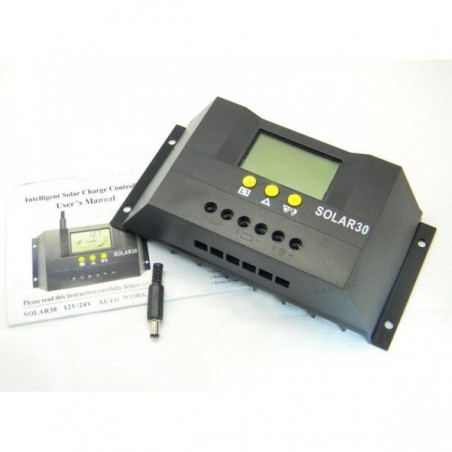

Laadimiskontroller Solar 30A 12/24V

80,00 €
Maksudeta

KOHAPEAL SAADAVAL!

12-24v, suure tablooga, automaatse 12-24v lülitusega, kvaliteetne ja hea hinnaga! Sobib kasutamiseks paneelidega kuni 12V 420W ja 24V 840W, SOOVITAME!

Rohkem infot ja täpne sobivus Tel 5888 0000

Kogus
Product available for orders



Turvaline eestimaine e-pood



Laokauba tarne 1-2 tööpaeva.



Kõikidele kaupadele garantii

  Specification:

- Rated Voltage: 12V / 24V ( Auto Switch )

- Rated Voltage: 12V / 24V ( Auto Switch )

- Rated Current : 30A

- Max Input Solar Panel Power: 840W , Connect 24V Battery ( Connect 12V Battery, Max solar Panel Power: 420W )

- Open Voltage of Solar Panel : ≤ 50V

- Over-charging Protection : 13.8V / ( 27.6V )

- Low Voltage Disconnection / LVD: 10.7V / ( 21.4V )

- Low Voltage Reconnected / LVR: 12.5 V / ( 25V )

- No Load Loss: ≤ 30mA

- Loop Voltage Drop: ≤170mV

- Charging Mode: PWM mode

- Temperature Compensation: -4mV / Cell / °C

- Installation Cable area: ≤ 7# AWG (16 mm² )

- Operating Temperature: -10 ~ 60 °C

- Storage Temperature: -30 ~ 70 °C

- Humidity Requirements: ≤ 90% , no condensation

- Dimensions: 90 x 188 x 48 mm

- Mounting Hole Spacing: 60 x 178 ---φ5 mm

- Weight : 370g

- Colour: Black
